SFP2

$25

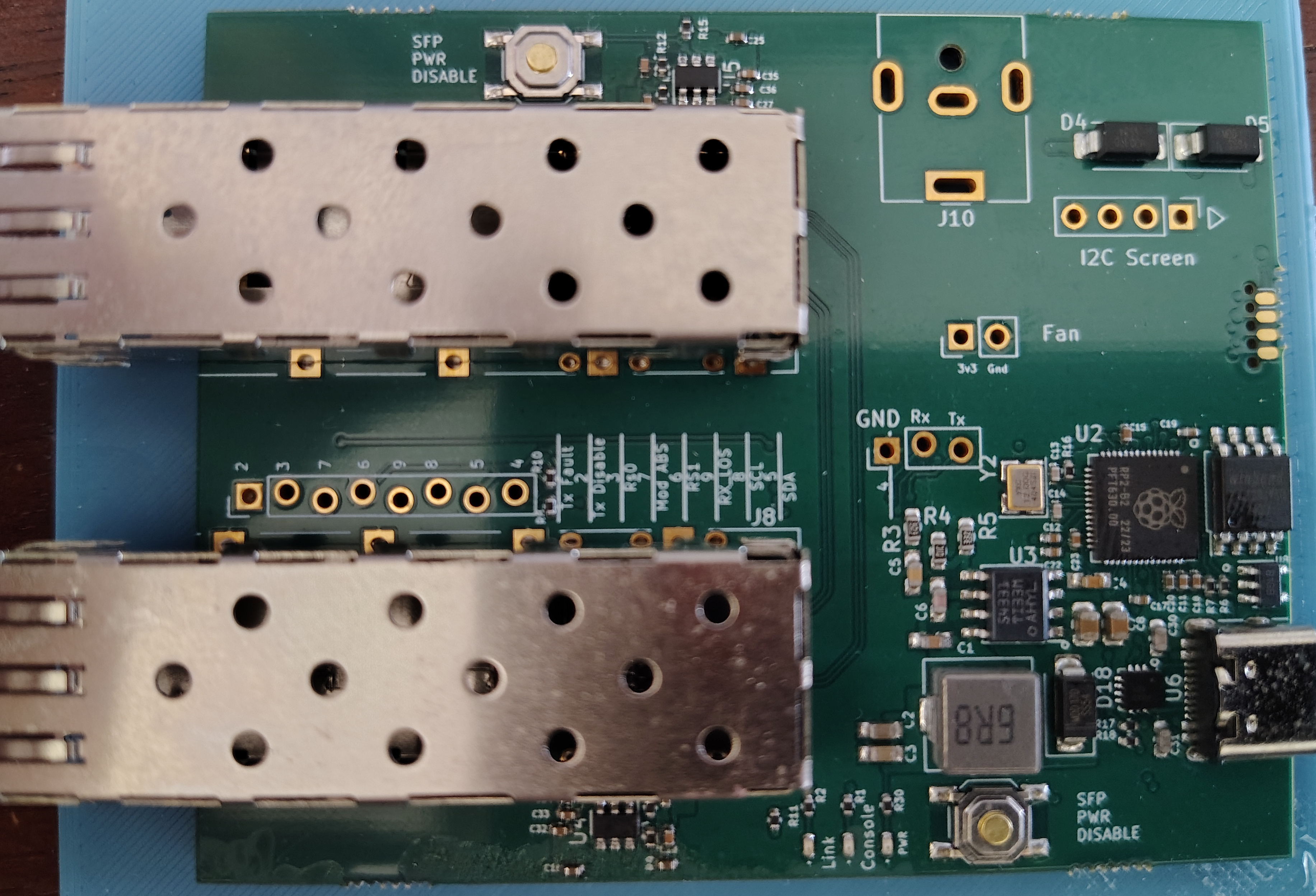

Sfp² Buddy is debugger DAC cable that connects any two SFP+ modules and theoretically supports any speed those modules share.

The Sfp² Buddy is controlled by a rp2040 microcontroller which is connected to the media converter and all non-serdes pins of the first sfp socket as well as to the usb-c port. As such it can control almost all functions of the first sfp stick including

• i2c commands
• power cycling the first sfp module
• toggling and viewing the status of first sfp module pins such as rx_los
• and most importantly using any of those pins as RX or TX for uart

Through the usb-c interface it exposes 2 serial ports, one which is connected to the uart functionality and the other is a management console allowing you to

• view status of pins
• power cycle the first sfp module
• change which pins (if any) are connected to the uart console

It also supports usb-pd for powering sticks with higher wattage than usb can normally handle.

The SFP² Buddy is an all-in-one package for both using and debugging the SFP onts designed with input from the 8311 discord server to provide all functions required for debugging SFP+ modules.

Currently ships to US, Canada, and United Kingdom. If your country is not listed please contact me on discord
